D2082
Allegro Micro Systems
54.14 KB

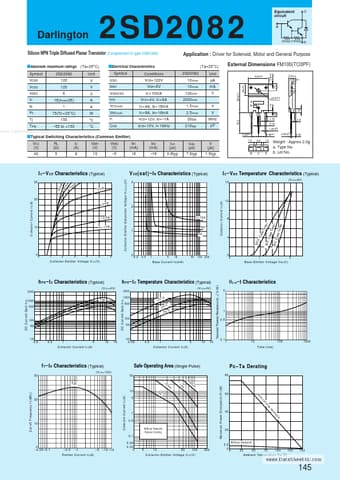

2sd2082.
Darlington
2SD2082
sElectrical Characteristics
Symbol ICBO IEBO V(BR)CEO hFE VCE(sat) VBE(sat) fT COB Conditions VCB=120V VEB=6V IC=10mA VCE=4V, IC=8.
📁 Related Datasheet
D2081UK - METAL GATE RF SILICON FET
(Seme LAB)
TetraFET
D2081UK
METAL GATE RF SILICON FET
MECHANICAL DATA Dimensions in mm.
0 .3 2 0 .2 4
0 .1 0 0 .0 2 16˚ m ax. 13˚
GOLD METALLISED MULTI-PURPOS.
D2082UK - TetraFET
(Seme LAB)
D2082UK
MECHANICAL DATA
TetraFET 40W – 28V – 1.0GHz
A K
B (2 pls) E
C 1
2
3
D 5 4
G (4 pls)
F
DIM A B C D E F G H I J K M N PIN 1 PIN 3
mm 6.
D2083UK - TetraFET
(Seme LAB)
D2083UK
MECHANICAL DATA
B (4 pls) C G (typ)
TetraFET 80W – 28V – 1.0GHz
3
E
2 1
A D
5
I F
4
DIM A B C D E F G H I J K M N PIN 1 PIN 3
mm 13.97 .
D2084UK - TetraFET
(Seme LAB)
D2084UK
MECHANICAL DATA
TetraFET 100W – 28V – 900MHz
B G (typ)
C (2 pls)
2 1
H D
3
P (2 pls) A
5
4
E (4 pls) F I
DIM A B C D E F G H I J K M .
D2084UK.01 - TetraFET
(Seme LAB)
D2084UK.01
MECHANICAL DATA
C (2 pls)
B
G (typ)
2 1
H D
3
P (2 pls) A
5
4
GOLD METALLISED MULTI-PURPOSE SILICON DMOS RF FET 100W – 28V – 1GHz .
D2085UK - TetraFET
(Seme LAB)
D2085UK
MECHANICAL DATA
TetraFET 120W – 28V – 0.8GHz
B G (typ)
C (2 pls)
2 1
H D
3
P (2 pls) A
5
4
E (4 pls) F I
DIM A B C D E F G H I J K M .
D2088 - 2SD2088
(Toshiba Semiconductor)
2SD2088
TOSHIBA Transistor Silicon NPN Epitaxial Type (Darlington Power Transistor)
2SD2088
Micro Motor Drive, Hammer Drive Applications Switching Ap.
D20881 - 8 X 8 DotMatrix Series
(TOYO LED ELECTRONICS)
TOYO
TOYO LED ELECTRONICS LIMITED
http://.toyo-led. e-mail: sales@toyo-led.
PACKAGE DIMENSION
D20881
Pb
7.62×7=53.34 60.2(2.4˝)
Ø5.00(0.20˝.
