2525 Datasheet - Allegro MicroSystems

2525 USB POWER CONTROL SWITCHES

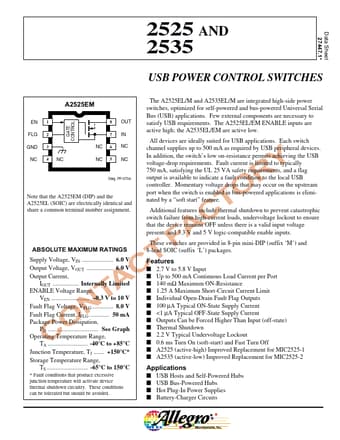

Data Sheet 27447.1 2525 AND 2535 USB POWER CONTROL SWITCHES A2525EM The A2525EL/M and A2535EL/M are integrated high-side power switches, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications. Few external components are necessary to GATE CONTROL EN 1 8 OUT satisfy USB requirements. The A2525EL/EM ENABLE inputs are FLG 2 7 IN active high; the A2535EL/EM are active low. All devices are ideally suited for USB applications. Each switch GND 3 NC 6 NC c.
