2536 - USB DUAL POWER CONTROL SWITCHES

Data Sheet 27447.2B 2526 AND 2536 USB DUAL POWER CONTROL SWITCHES A2526EL The A2526EL and A2536EL are integrated high-side dual power switches, optimized for self-powered and bus-powered Universal Serial Bus (USB) applications.

Few external components are necessary to CONTROL CONTROL ENA 1 8 OUTA satisfy USB requirements.

The A2526EL ENABLE inputs are active GATE GATE FLGA 2 TFLGB 3 DUC Y.ENB 4 7 IN 6 GND 5 OUTB Dwg.

PP-070-6 ED PRNOCE ONLABSOLUTE MAXIMUM RATINGS U ESupply Voltage,

2536-AllegroMicroSystems.pdf

Preview of 2536 PDF

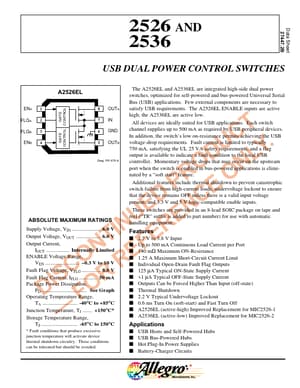

2536 Datasheet Preview Page 2 2536 Datasheet Preview Page 3

Datasheet Details

Part number:

2536

Manufacturer:

Allegro MicroSystems

File Size:

169.59 KB

Description:

Usb dual power control switches.
