3010KM Datasheet - Allegro MicroSystems

3010KM SI-3010KM

ar ors e n t Li ula g Re SI-3010KM 1 A, Low-Dropout, 1.0~16 V Regulator Designed to meet the high-current requirements in industrial and consumer applications; embedded core, memory, or logic supplies; TVs, VCRs, and office equipment, the SI-3010KM voltage regulator offers the reduced dropout voltage and low quiescent current essential for improved efficiency. This device delivers a regulated output at up to 1 A. Integrated thermal and overcurrent protection enhance overall system reliability..

3010KM Features

* 1 A Output Current

* 0.6 V Maximum Dropout Voltage at IO = 1 A

* Fast Transient Response

* 1 µA Maximum Standby Current

* Adjustable 1.0 ~ 16 V Output Voltage

* Remote Voltage Sensing

* Foldback Current Limiting

* Overvoltage Protection

* Ground Tab for Superior

3010KM-AllegroMicroSystems.pdf

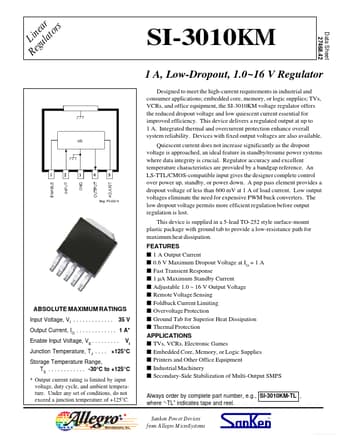

3010KM Datasheet Preview — Preview of 3010KM PDF

Datasheet Details

Part number:

3010KM

Manufacturer:

Allegro MicroSystems

File Size:

373.19 KB

Description:

si-3010km.
