5354, SMOKE DETECTOR WITH INTERCONNECT

5354 SMOKE DETECTOR WITH INTERCONNECT NO CONNECT.I/O LOW-V SET NO CONNECT.LED + SUPPLY TIMING RES.FEEDBACK 1 2 3 4 5 6 7 8 V SS V DD NC NC LOGIC 16.
The A5354CA is a low-current CMOS circuit providing all of the required features for an ionization-type smoke detector.

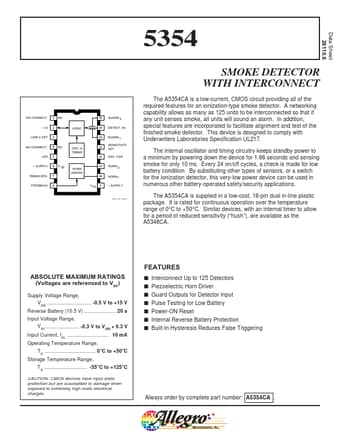

datasheet Preview Page 1 from Datasheet4u.com

5354_AllegroMicroSystems.pdf

5354 Datasheet Preview — Preview of 5354 PDF

Datasheet Details

Part number:

5354

Manufacturer:

Allegro MicroSystems

File Size:

77.69 KB

Description:

SMOKE DETECTOR WITH INTERCONNECT

Features

* for an ionization-type smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device

Applications

* The A5354CA is supplied in a low-cost, 16-pin dual in-line plastic package. It is rated for continuous operation over the temperature range of 0°C to +50°C. Similar devices, with an internal timer to allow for a period of reduced sensitivity (“hush”), are available as the A5348CA. OSC. & TIMING H
