5368 Datasheet - Allegro MicroSystems

5368, SMOKE DETECTOR WITH INTERCONNECT AND TIMER

5368 SMOKE DETECTOR WITH INTERCONNECT AND TIMER The A5368CA is a low-current, CMOS circuit providing all of the required .
The A5368CA is a low-current CMOS circuit providing all of the required features for an ionization-type smoke detector.

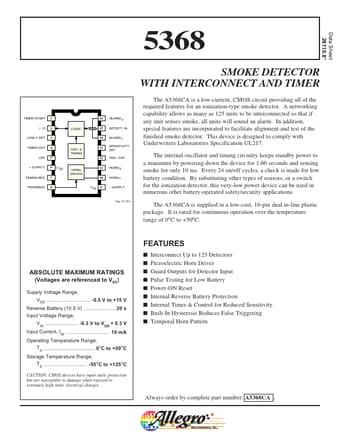

datasheet Preview Page 1 from Datasheet4u.com

5368_AllegroMicroSystems.pdf

5368 Datasheet Preview — Preview of 5368 PDF

Datasheet Details

Part number:

5368

Manufacturer:

Allegro MicroSystems

File Size:

89.64 KB

Description:

SMOKE DETECTOR WITH INTERCONNECT AND TIMER

Features

* for an ionization-type smoke detector. A networking capability allows as many as 125 units to be interconnected so that if any unit senses smoke, all units will sound an alarm. In addition, special features are incorporated to facilitate alignment and test of the finished smoke detector. This device

Applications

* The A5368CA is supplied in a low-cost, 16-pin dual in-line plastic package. It is rated for continuous operation over the temperature range of 0°C to +50°C. TIMER START I/O LOW-V SET TIMER OUT LED + SUPPLY TIMING RES. FEEDBACK 1 2 3 4 5 6 7 8 V SS V DD LOGIC 16 15 14 13 12 11 10 9 GUARD 2 DETECT. I
