A1147 - (A1147 / A1148) Low Current Ultrasensitive Two-Wire Chopper-Stabilized Unipolar Hall Effect Switches

Allegro MicroSystems

The A1147 by Allegro MicroSystems is a (A1147 / A1148) Low Current Ultrasensitive Two-Wire Chopper-Stabilized Unipolar Hall Effect Switches. Below is the official datasheet preview.

📥 Download Datasheet

A1147 (A1147 / A1148) Low Current Ultrasensitive Two-Wire Chopper-Stabilized Unipolar Hall Effect Switches by Allegro MicroSystems - Datasheet Preview — Official preview page of the **A1147** (A1147 / A1148) Low Current Ultrasensitive Two-Wire Chopper-Stabilized Unipolar Hall Effect Switches datasheet (Allegro MicroSystems).

Datasheet Details

Part number	A1147
Manufacturer	Allegro MicroSystems
File Size	355.87 KB
Description	(A1147 / A1148) Low Current Ultrasensitive Two-Wire Chopper-Stabilized Unipolar Hall Effect Switches
Datasheet	A1147_AllegroMicroSystems.pdf

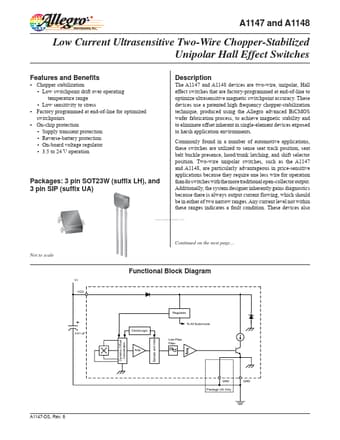

Additional preview pages of the A1147 datasheet.

A1147 Product details

Description

The A1147 and A1148 devices are two-wire, unipolar, Hall effect switches that are factory-programmed at end-of-line to optimize ultrasensitive magnetic switchpoint accuracy.

Features

Chopper stabilization ▫ Low switchpoint drift over operating temperature range ▫ Low sensitivity to stress.
Factory programmed at end-of-line for optimized switchpoints.
On-chip protection ▫ Supply transient protection ▫ Reverse-battery protection ▫ On-board voltage regulator ▫ 3.5 to 24 V operation.
