A2595SLW, A2595 Datasheet - Allegro MicroSystems

A2595SLW - 8-CHANNEL SATURATED SINK DRIVER

Data Sheet 29320C 2595 8-CHANNEL SATURATED SINK DRIVER Developed for use with low-voltage LED and incandescent dis- UDN2595A (DIP) plays requiring low output saturation voltage, the UDN2595A and A2595SLW meet many interface needs, including those exceeding the capabilities of standard logic buffers.

The eight non-Darlington outputs of each driver can continuously and simultaneously sink load PRODnlUy CT Dwg.No.A-11,407 UED ce O ABSOLUTE MAXIMUM RATINGS n at 25°C Free-Air Temperature IN

A2595SLW Features

* s Non-Inverting Function (Input Low = Output ON) s 200 mA Current Rating s 100 mA Continuous and Simultaneous (All outputs) to +85°C s Low Saturation Voltage s TTL, CMOS, NMOS Compatible s Efficient Input/Output Pin Format s DIP or SOIC Packaging Package Power Dissipation, PD See Graph Operating T

A2595_AllegroMicroSystems.pdf

This datasheet PDF includes multiple part numbers: A2595SLW, A2595. Please refer to the document for exact specifications by model.

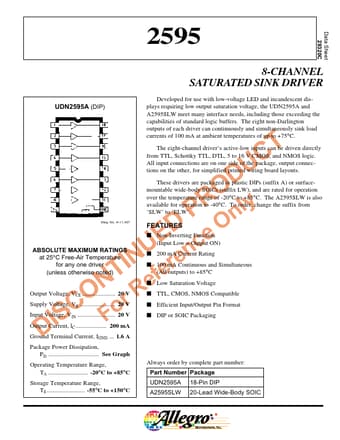

A2595SLW Datasheet Preview Page 2 A2595SLW Datasheet Preview Page 3

Datasheet Details

Part number:

A2595SLW, A2595

Manufacturer:

Allegro MicroSystems

File Size:

79.52 KB

Description:

8-channel saturated sink driver.

Note:

This datasheet PDF includes multiple part numbers: A2595SLW, A2595.
Please refer to the document for exact specifications by model.
