A3064 HALL-EFFECT GEAR-TOOTH SENSOR

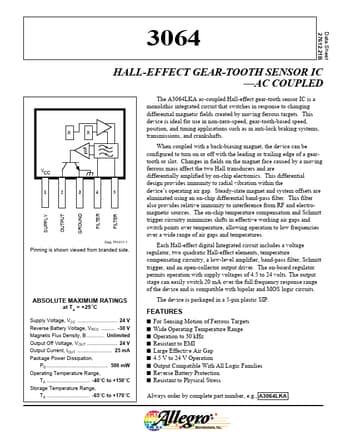

Data Sheet 27612.21B 3064 HALL-EFFECT GEAR-TOOTH SENSOR IC AC COUPLED X X VCC 1 2 3 4 5 SUPPLY OUTPUT GROUND FILTER FILTER Dwg. PH-011-1 Pinning is shown viewed from branded side. ABSOLUTE MAXIMUM RATINGS at TA = +25°C Supply Voltage, VCC 24 V Reverse Battery Voltage, VRCC -30 V Magnetic Flux Density, B Unlimited Output Off Voltage, VOUT 24 V Output Current, IOUT 25 mA Package Power Dissipation, PD 500 mW Operating Temperature Range, TA -40°C to +150°C Storage Temper.

A3064 Features

* For Sensing Motion of Ferrous Targets

* Wide Operating Temperature Range

* Operation to 30 kHz

* Resistant to EMI

* Large Effective Air Gap

* 4.5 V to 24 V Operation

* Output Compatible With All Logic Families

* Reverse Battery Protection

* Resistant to Physical

A3064-AllegroMicroSystems.pdf

A3064 Datasheet Preview — Preview of A3064 PDF

Datasheet Details

Part number:

A3064

Manufacturer:

Allegro MicroSystems

File Size:

1.46 MB

Description:

Hall-effect gear-tooth sensor.
