A6219DS Datasheet, Driver, Allegro MicroSystems

A6219DS Features

  • Driver ▪ Interchangeable with SGS L6219DS ▪ 750 mA Continuous Output Current ▪ 45 V Output Sustaining Voltage ▪ Internal Clamp Diodes ▪ Internal PWM Current Control ▪ Low Output Saturation Vol

PDF File Details

Part number:

A6219DS

Manufacturer:

Allegro MicroSystems

File Size:

337.76kb

Download:

📄 Datasheet

Description:

Dual full-bridge pwm motor driver. The L6219DS motor driver is designed to drive both windings of a bipolar stepper motor or bidirectionally control two DC motors. Both

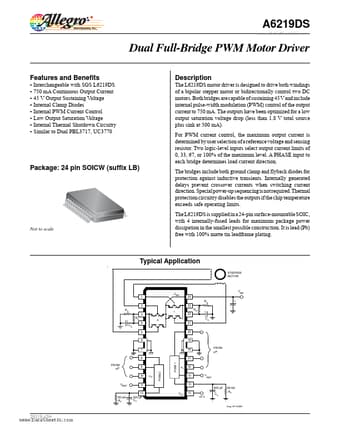

Datasheet Preview: A6219DS 📥 Download PDF (337.76kb)
Page 2 of A6219DS Page 3 of A6219DS

A6219DS Application

  • Applications Information PWM Current Control The L6219DS dual bridge is designed to drive both windings of a bipolar stepper motor. Output current i
