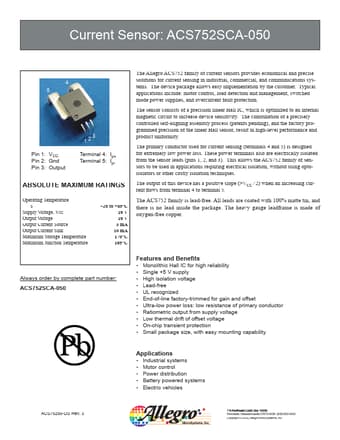

ACS752SCA-050
Features and Benefits
Always order by plete part number:
- -
- -
- -
- -
- -
- ACS752SCA-050
Monolithic Hall IC for high reliability Single +5 V supply High isolation voltage Lead-free UL recognized End-of-line factory-trimmed for gain and offset Ultra-low power loss: low resistance of primary conductor Ratiometric output from supply voltage Low thermal drift of offset voltage On-chip transient protection Small package size, with easy mounting capability
Applications
- -
- -
- Industrial systems Motor control Power distribution Battery powered systems Electric vehicles
ACS75250-DS Rev. 3
115 Northeast Cutoff, Box 15036 Worcester, Massachusetts 01615-0036 (508) 853-5000 Copyright © 2003, Allegro Micro Systems, Inc.
Current Sensor: ACS752SCA-050
Functional Block Diagram
IP Terminal 5
+5V
VCC Pin 1
Dynamic Offset Cancellation
Amp
Out
Output Pin 3
Filter
0.1 µF
Gnd Pin 2
IP+ Terminal 4
ACS75250-DS Rev. 3
