STR-A6051M, STR-A60xxM Datasheet - Allegro MicroSystems

STR-A6051M Current Mode Control PWM Regulator

The STR-A60xxM series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC. Including a startup circuit and a standby function in the controller, the product achieves low power consumption, low standby power, and high cost-effectiveness power .

STR-A6051M Features

* ▪ Small DIP8 package with 8 to 24 W power output 230 VAC ▪ Current Mode PWM control with 67 kHz switching frequency ▪ Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost ▪ Built-in Slope Compensation function, avoiding subharmonic oscillat

STR-A60xxM_AllegroMicroSystems.pdf

This datasheet PDF includes multiple part numbers: STR-A6051M, STR-A60xxM. Please refer to the document for exact specifications by model.

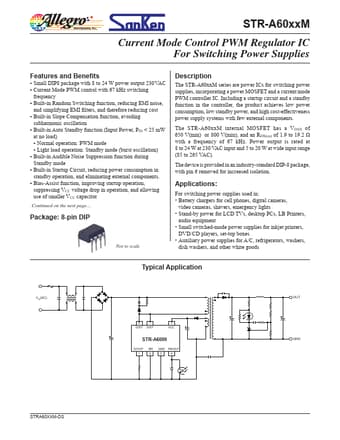

STR-A6051M Datasheet Preview Page 2 STR-A6051M Datasheet Preview Page 3

Datasheet Details

Part number:

STR-A6051M, STR-A60xxM

Manufacturer:

Allegro MicroSystems

File Size:

528.27 KB

Description:

Current mode control pwm regulator.

Note:

This datasheet PDF includes multiple part numbers: STR-A6051M, STR-A60xxM.
Please refer to the document for exact specifications by model.
