STR-A6053M - Current Mode Control PWM Regulator

Download the STR-A6053M datasheet PDF (STR-A60xxM included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for current mode control pwm regulator.

Description

The STR-A60xxM series are power ICs for switching power supplies, incorporating a power MOSFET and a current mode PWM controller IC.

Features

  • Small DIP8 package with 8 to 24 W power output 230 VAC.
  • Current Mode PWM control with 67 kHz switching frequency.
  • Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost.
  • Built-in Slope Compensation function, avoiding subharmonic oscillation.
  • Built-in Auto Standby function (Input Power, PIN < 25 mW at no load) ▫ Normal operation: PWM mode ▫ Light load operation: Standby mode (burst oscillation).
  • Built-in Audi.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (STR-A60xxM_AllegroMicroSystems.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number STR-A6053M
Manufacturer Allegro MicroSystems
File Size 528.27 KB
Description Current Mode Control PWM Regulator
Datasheet download datasheet STR-A6053M Datasheet

📁 Similar Datasheet

  • STR-A6053M - Off-Line PWM Controllers (Sanken)
  • STR-A6051M - Off-Line PWM Controllers (Sanken)
  • STR-A6052M - Off-Line PWM Controllers (Sanken Electric)
  • STR-A6059H - Off-Line PWM Controllers (Sanken Electric)
  • STR-A6000 - Off-Line PWM Controllers (Sanken)
  • STR-A6000H - STR-A6000H Series PWM Off-Line Switching Regulator ICs (Sanken Electric)
  • STR-A6061H - Off-Line PWM Controllers (Sanken Electric)
  • STR-A6061HD - Off-Line PWM Controllers (Sanken)
  • STR-A6061HZ - Off-Line PWM Controllers (Sanken)
  • STR-A6061MZ - Off-Line PWM Controllers (Sanken)
Other Datasheets by Allegro MicroSystems
  • STR-A6051M - Current Mode Control PWM Regulator
  • STR-A6052M - Current Mode Control PWM Regulator
  • STR-A6079M - Current Mode Control PWM Regulator
  • STR-A60xxM - Current Mode Control PWM Regulator
  • STR-A6151 - (STR-A6151 / STR-A6159) Universal Input / 13 or 16W Flyback Switching Regulator
  • STR-A6153E - Universal Input / 20W Flyback Switching Regulator
  • STR-A6159 - (STR-A6151 / STR-A6159) Universal Input / 13 or 16W Flyback Switching Regulator
  • STR-A6169 - Universal-Input/5W Flyback Switching Regulator

Full PDF Text Transcription

Click to expand full text

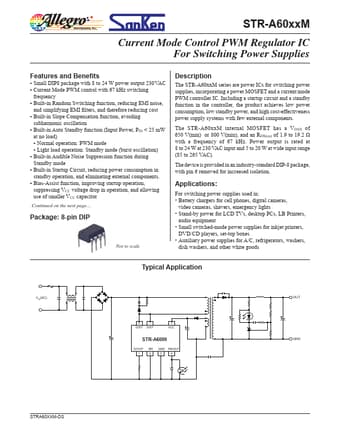

www.DataSheet.co.kr STR-A60xxM Current Mode Control PWM Regulator IC For Switching Power Supplies Features and Benefits ▪ Small DIP8 package with 8 to 24 W power output 230 VAC ▪ Current Mode PWM control with 67 kHz switching frequency ▪ Built-in Random Switching function, reducing EMI noise, and simplifying EMI filters, and therefore reducing cost ▪ Built-in Slope Compensation function, avoiding subharmonic oscillation ▪ Built-in Auto Standby function (Input Power, PIN < 25 mW at no load) ▫ Normal operation: PWM mode ▫ Light load operation: Standby mode (burst oscillation) ▪ Built-in Audible Noise Suppression function during Standby mode ▪ Built-in Startup Circuit, reducing power consumption in standby operation, and eliminating external components.
