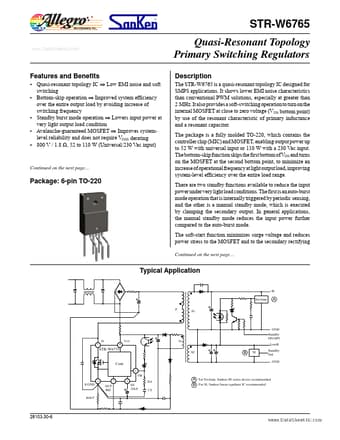

STR-W6765 www.DataSheet4U.com Quasi-Resonant Topology Primary Switching Regulators .
The STR-W6765 is a quasi-resonant topology IC designed for SMPS applications.

W6765_AllegroMicroSystems.pdf

W6765 Datasheet Preview — Preview of W6765 PDF

Datasheet Details

Part number:

W6765

Manufacturer:

Allegro MicroSystems

File Size:

464.78 KB

Description:

STRW6765

Features

* ▪ Quasi-resonant topology IC ⇒ Low EMI noise and soft switching ▪ Bottom-skip operation ⇒ Improved system efficiency over the entire output load by avoiding increase of switching frequency ▪ Standby burst mode operation ⇒ Lowers input power at very light output load condition ▪ Avalanche-guaranteed

Applications

* It shows lower EMI noise characteristics than conventional PWM solutions, especially at greater than 2 MHz. It also provides a soft-switching operation to turn on the internal MOSFET at close to zero voltage (VDS bottom point) by use of the resonant characteristic of primary inductance and a resona
