2557 Datasheet, Driver, Allegro

2557 Features

  • Driver I 300 mA Output Current per Channel I Independent Over-Current Protection &Thermal Limiting for Each Driver I Output Voltage to 60 V I Output SOA Protection I Fault-Detection Circuitry

PDF File Details

Part number:

2557

Manufacturer:

Allegro

File Size:

173.07kb

Download:

📄 Datasheet

Description:

Protected quad low-side driver. AND APPLICATION The A2557 low-current quad power drivers provide the same protected output driver function as (and are pin compatibl

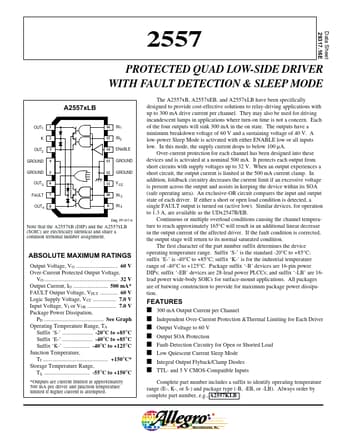

Datasheet Preview: 2557 📥 Download PDF (173.07kb)
Page 2 of 2557 Page 3 of 2557

2557 Application

  • Applications with up to 300 mA drive current per channel. They may also be used for driving incandescent lamps in applications where turn-on time is

TAGS

2557
PROTECTED
QUAD
LOW-SIDE
DRIVER
Allegro
