2595 - 8-CHANNEL SATURATED SINK DRIVER

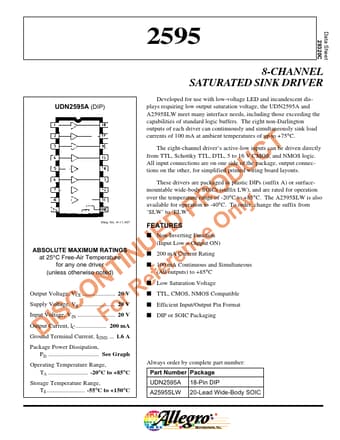

Data Sheet 29320C 2595 8-CHANNEL SATURATED SINK DRIVER Developed for use with low-voltage LED and incandescent dis- UDN2595A (DIP) plays requiring low output saturation voltage, the UDN2595A and A2595SLW meet many interface needs, including those exceeding the capabilities of standard logic buffers.

The eight non-Darlington outputs of each driver can continuously and simultaneously sink load PRODnlUy CT Dwg.No.A-11,407 UED ce O ABSOLUTE MAXIMUM RATINGS n at 25°C Free-Air Temperature IN

2595 Features

* s Non-Inverting Function (Input Low = Output ON) s 200 mA Current Rating s 100 mA Continuous and Simultaneous (All outputs) to +85°C s Low Saturation Voltage s TTL, CMOS, NMOS Compatible s Efficient Input/Output Pin Format s DIP or SOIC Packaging Package Power Dissipation, PD See Graph Operating T

2595-Allegro.pdf

Preview of 2595 PDF
2595 Datasheet Preview Page 2 2595 Datasheet Preview Page 3

Datasheet Details

Part number:

2595

Manufacturer:

Allegro

File Size:

79.52 KB

Description:

8-channel saturated sink driver.
