A1126 Chopper-Stabilized Omnipolar Hall-Effect Switch

A1126 Description

A1126 Chopper-Stabilized Omnipolar Hall-Effect Switch .
The A1126 integrated circuit is an omnipolar, ultrasensitive Hall-effect switch with a digital output.

A1126 Features

* AEC-Q100 automotive qualified
* Omnipolar operation
* Low switchpoint drift
* Superior temperature stability
* Insensitive to physical stress
* Reverse-battery protection
* Robust EMC capability
* Robust ESD protection PACKAGES: Not t

A1126 Applications

* The A1126 is rated for operation between the ambient temperatures
* 40°C to 150°C. The available package styles provide magnetically optimized solutions for most applications. Package LH is an SOT23W, a miniature low-profile surface-mount package, while package UA is a three-lead ultra-mini

📥 Download Datasheet

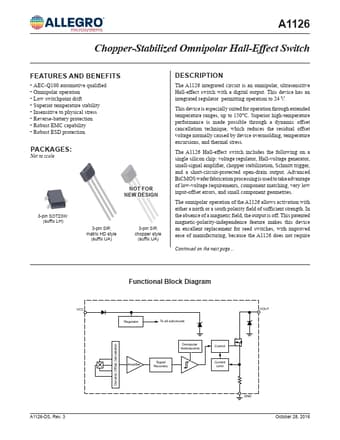

Preview of A1126 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A1126
Manufacturer
Allegro
File Size
573.75 KB
Datasheet
A1126-Allegro.pdf
Description
Chopper-Stabilized Omnipolar Hall-Effect Switch
