A1192, A1190, Two-Wire Hall-Effect Switches

A119x and A119x-F Programmable, Chopper-Stabilized, Two-Wire Hall-Effect Switches .
The A119x and A119x-F comprise a family of two-wire, unipolar, Hall-effect switches, which can be trimmed by the user at end-of-line to optimize magne.

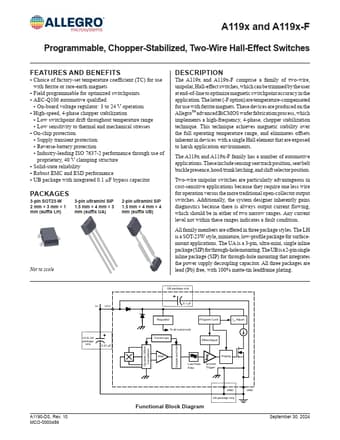

datasheet Preview Page 1 from Datasheet4u.com

A1190-Allegro.pdf

A1192 Datasheet Preview — This datasheet PDF includes multiple part numbers: A1192, A1190. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

A1192, A1190

Manufacturer:

Allegro

File Size:

1.32 MB

Description:

Two-Wire Hall-Effect Switches

Note:

This datasheet PDF includes multiple part numbers: A1192, A1190.
Please refer to the document for exact specifications by model.

Features

* ▪ Choice of factory-set temperature coefficient (TC) for use with ferrite or rare-earth magnets ▪ Field programmable for optimized switchpoints ▪ AEC-Q100 automotive qualified ▫ On-board voltage regulator: 3 to 24 V operation ▪ High-speed, 4-phase chopper stabilization ▫ Low switchpoint drift throug

Applications

* These include sensing seat track position, seat belt buckle presence, hood/trunk latching, and shift selector position. Two-wire unipolar switches are particularly advantageous in cost-sensitive applications because they require one less wire for operation versus the more traditional open-collector
