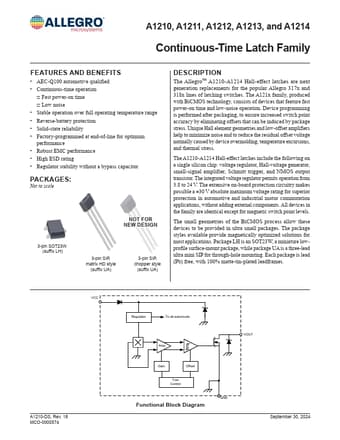

A1213
FEATURES
AND BENEFITS
- AEC-Q100 automotive qualified
- Continuous-time operation
- Fast power-on time
- Low noise
- Stable operation over full operating temperature range
- Reverse-battery protection
- Solid-state reliability
- Factory-programmed at end-of-line for optimum performance
- Robust EMC performance
- High ESD rating
- Regulator stability without a bypass capacitor
PACKAGES:
Not to scale
3-pin SOT23W (suffix LH)
NOT FOR NEW DESIGN
3-pin SIP, matrix HD style
(suffix UA)
3-pin SIP, chopper style
(suffix UA)
DESCRIPTION
The Allegro™ A1210-A1214 Hall-effect latches are next generation replacements for the popular Allegro 317x and 318x lines of latching switches. The A121x family, produced with Bi CMOS technology, consists of devices that feature fast power-on time and low-noise operation. Device programming is performed after packaging, to ensure increased switch point accuracy by eliminating offsets that can be induced by package stress. Unique Hall element geometries and...
