A3210 - ULTRA-SENSITIVE HALL-EFFECT SWITCHES

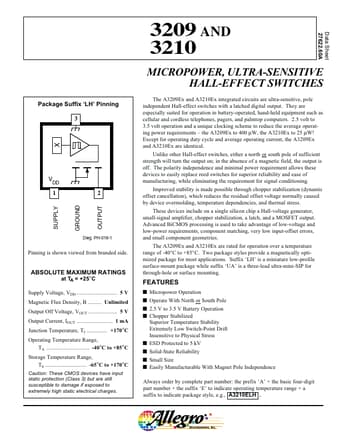

Data Sheet 27622.60A 3209 AND 3210 Package Suffix ‘LH’ Pinning 3 X V DD 1 2 OUTPUT GROUND SUPPLY Dwg. PH-016-1 Pinning is shown viewed from branded side. ABSOLUTE MAXIMUM RATINGS at TA = +25°C Supply Voltage, VDD 5 V Magnetic Flux Density, B Unlimited Output Off Voltage, VOUT 5 V Output Current, IOUT 1 mA Junction Temperature, TJ +170°C Operating Temperature Range, TA -40°C to +85°C Storage Temperature Range, TS -65°C to +170°C Caution: These CMOS devices have input static prote.

A3210 Features

* I Micropower Operation I Operate With North or South Pole I 2.5 V to 3.5 V Battery Operation I Chopper Stabilized Superior Temperature Stability Extremely Low Switch-Point Drift Insensitive to Physical Stress I ESD Protected to 5 kV I Solid-State Reliability I Small Size I Easily Manufacturable With
