A3907 - Low Voltage Voice Coil Motor Driver

Datasheet Summary

Description

Designed for linear control of small form factor voice coil motors, the A3907 is capable of peak output currents to 102 mA and operating voltages to 5.5 V.

Internal circuit protection includes thermal shutdown with hysteresis, flyback clamp diode, and undervoltage monitoring of VDD.

Features

  • WLCSP package for minimum footprint.
  • Ramp control circuit.
  • Fixed I2C logic thresholds.
  • 10-bit D-to-A converter.
  • 100 µA resolution.
  • Low voltage I2C serial interface.
  • Low current draw sleep mode-active low.
  • 2.3 to 5.5 V operation.

📥 Download Datasheet

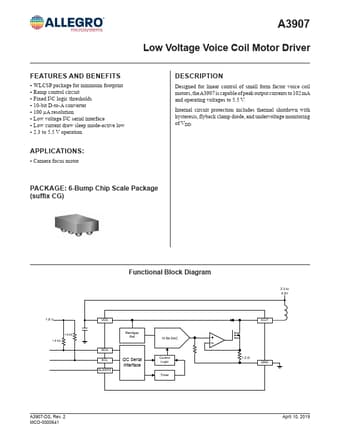

Datasheet preview – A3907

Datasheet Details

Part number A3907
Manufacturer Allegro
File Size 791.74 KB
Description Low Voltage Voice Coil Motor Driver
Datasheet download datasheet A3907 Datasheet
Additional preview pages of the A3907 datasheet.

📁 Similar Datasheet

  • A390 - SILICON RECTIFIER (Powerex Power Semiconductors)
  • A3903 - Low Voltage DC Motor Driver (Allegro Micro Systems)
  • A3904 - Low Voltage Voice Coil Motor Driver (Allegro MicroSystems)
  • A3906 - Low Voltage Stepper and Single/Dual DC Motor Driver (Allegro MicroSystems)
  • A3908 - Low Voltage DC Motor Driver (Allegro MicroSystems)
  • A39 - 10 TO 2000 MHz CASCADABLE AMPLIFIER (Tyco Electronics)
  • A3910 - Dual Half Bridge Motor Driver (Allegro MicroSystems)
  • A3916 - Dual DMOS Full-Bridge Motor Driver (Allegro MicroSystems)
  • A3918 - Low Voltage DC Motor Driver (Allegro MicroSystems)
  • A3930 - Automotive 3-Phase BLDC Controller and MOSFET Driver (Allegro MicroSystems)
Other Datasheets by Allegro
  • A3901 - Dual Full Bridge Low Voltage Motor Driver
  • A3909 - Dual Full Bridge Motor Driver
  • A3921 - Automotive Full Bridge MOSFET Driver
  • A3922 - Automotive Full-Bridge MOSFET Driver
  • A3924 - Automotive Full-Bridge MOSFET Driver
  • A3935 - 3-Phase Power MOSFET Controller
  • A3940 - Full-Bridge Power MOSFET Controller
  • A3941 - Automotive Full Bridge MOSFET Driver

Full PDF Text Transcription

Click to expand full text
A3907 Low Voltage Voice Coil Motor Driver FEATURES AND BENEFITS ▪ WLCSP package for minimum footprint ▪ Ramp control circuit ▪ Fixed I2C logic thresholds ▪ 10-bit D-to-A converter ▪ 100 µA resolution ▪ Low voltage I2C serial interface ▪ Low current draw sleep mode-active low ▪ 2.3 to 5.5 V operation APPLICATIONS: ▪ Camera focus motor DESCRIPTION Designed for linear control of small form factor voice coil motors, the A3907 is capable of peak output currents to 102 mA and operating voltages to 5.5 V. Internal circuit protection includes thermal shutdown with hysteresis, flyback clamp diode, and undervoltage monitoring of VDD. PACKAGE: 6-Bump Chip Scale Package (suffix CG) Functional Block Diagram 1.8 V 1.8 kΩ 1.
