A4926 - Automotive Half-Bridge MOSFET Driver

Product Overview

Allegro

Datasheet Details

Part number	A4926
Manufacturer	Allegro
File Size	1.80 MB
Description	Automotive Half-Bridge MOSFET Driver
Datasheet	A4926 Datasheet

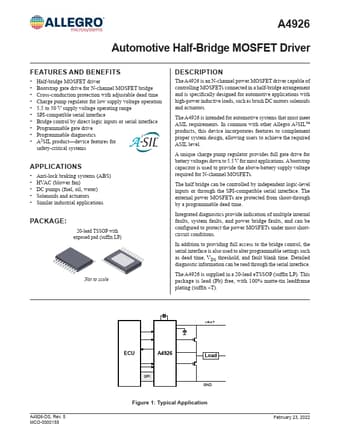

Additional preview pages of the A4926 datasheet.

Product details

Description

The A4926 is an N-channel power MOSFET driver capable of controlling MOSFETs connected in a half-bridge arrangement and is specifically designed for automotive applications with high-power inductive loads, such as brush DC motors solenoids and actuators.

Features

Half-bridge MOSFET driver.
Bootstrap gate drive for N-channel MOSFET bridge.
Cross-conduction protection with adjustable dead time.
Charge pump regulator for low supply voltage operation.
5.5 to 50 V supply voltage operating range.
SPI-compatible serial interface.
Bridge control by direct logic inputs or serial interface.
Programmable gate drive.
Programmable diagnostics 2.
A2SIL product.
