A4935 Automotive 3-Phase MOSFET Driver

A4935 Description

A4935 Automotive 3-Phase MOSFET Driver .
The A4935 is a 3-phase controller for use with N-channel external power MOSFETs and is specifically designed for automotive applications.

A4935 Features

* ▪ High current 3-phase gate drive for N-channel MOSFETs ▪ Cross-conduction protection with adjustable dead time ▪ Top-off charge pump for 100% PWM ▪ Charge pump for low supply voltage operation ▪ Uncommitted current sense amplifier ▪ 5.5 to 50 V supply voltage range ▪ Compatible with 3.3 V and 5 V l

A4935 Applications

* A unique charge pump regulator provides full (>10 V) gate drive for battery voltages down to 7 V and allows the A4935 to operate with a reduced gate drive, down to 5.5 V. A bootstrap capacitor is used to provide the above-battery supply voltage required for N-channel MOSFETs. An internal charge pum

📥 Download Datasheet

Preview of A4935 PDF

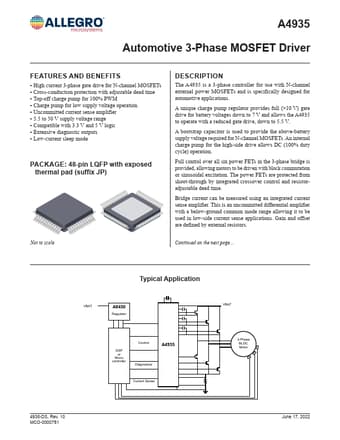

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
A4935
Manufacturer
Allegro
File Size
1.01 MB
Datasheet
A4935-Allegro.pdf
Description
Automotive 3-Phase MOSFET Driver
