A4942

Three-Phase Sensorless Fan Driver

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Allegro MicroSystems LLC A4942GESTR-T IC MOTOR DRIVER 20QFN DigiKey 8676 500 units
$1.52

A4942 Datasheet (0.96 MB)

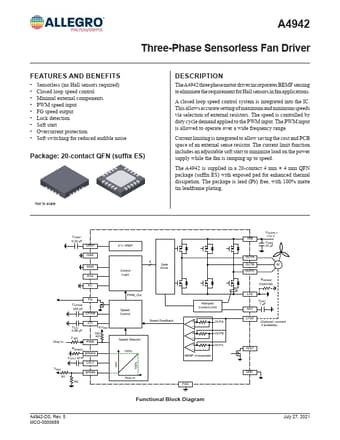

Preview of A4942 PDF Datasheet

Datasheet Details

Part number:

A4942

Manufacturer:

Allegro

File Size:

0.96 MB

Description:

Three-phase sensorless fan driver

A4942 Features

* Sensorless (no Hall sensors required)

* Closed loop speed control

* Minimal external components

* PWM speed input

* FG speed output

* Lock detection

* Soft start

* Overcurrent protection

* Soft switching for reduced audible no

A4942 General Description

TheA4942 three phase motor driver incorporates BEMF sensing to eliminate the requirement for Hall sensors in fan applications. A closed loop speed control system is integrated into the IC. This allows accurate setting of maximum and minimum speeds via selection of external resistors. The speed is co.
