SCL5616

2-FUNCTION / 4-DIGIT LCD AUTOMOTIVE CLOCK PROGRAMMABLE

SCL5616 Features

* SELECT GROUND ABSOLUTE MAXIMUM RATINGS Supply Current, IDD 2.0 mA Input Voltage Range, VIN (except VPP) -0.3 V to VDD (Programming Power Voltage, VPP) 18.5 V Input Current (except VPP), IIN ±10 mA Power Dissipation, PD 300 mW Operating Temperature Range, TA -40°C to +85°C Storage Temperatu

SCL5616 General Description

DATA Logic Levels are VDD and Ground Power-Up Reset. When power up occurs, the hours and minutes counters are reset, and the clock starts running: Operation 12-Hour mode and counting starts from 1:00 AM Programming Modes. Data is loaded by pulling DATA low (1 µs pulse duration) n times to set the d.

SCL5616 Datasheet (87.17 KB)

Preview of SCL5616 PDF

Datasheet Details

Part number:

SCL5616

Manufacturer:

Allegro

File Size:

87.17 KB

Description:

2-function / 4-digit lcd automotive clock programmable.

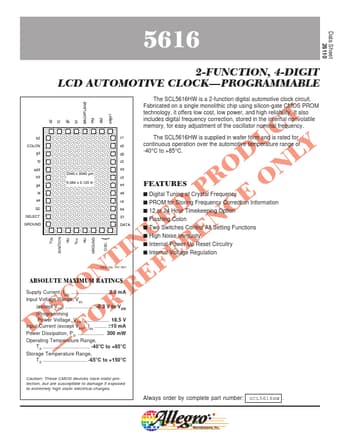

5616 2-FUNCTION, 4-DIGIT LCD AUTOMOTIVE CLOCK 5616 Data Sheet 26110 2-FUNCTION, 4-DIGIT LCD AUTOMOTIVE CLOCK

*PROGRAMMABLE The SCL5616HW is.
