STR-S5708 Datasheet - Allegro

Datasheet Details

Part number:

STR-S5708

Manufacturer:

Allegro

File Size:

122.70 KB

Description:

Off-Line Switching Regulators

Features

* s Quasi-Resonant Operation for Low EMI and High Efficiency s Low-Power Output Standby Mode s Indirect Feedback from Auxiliary Winding Reduces External Component Count s Pulse-by-Pulse Over-Current Protection s Latched Over-Voltage and Thermal Protection s Third-Generation Switching Transistor with

STR-S5708_Allegro.pdf

Preview of STR-S5708 PDF
STR-S5708 Datasheet Preview Page 2 STR-S5708 Datasheet Preview Page 3

STR-S5708, Off-Line Switching Regulators

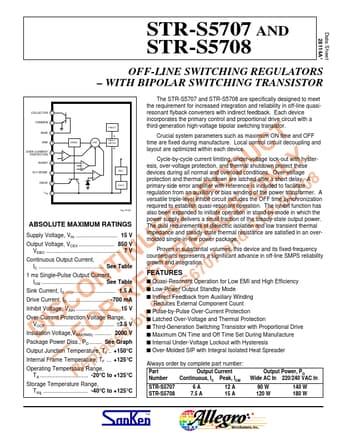

STR-S5707 AND STR-S5708 OFF-LINE SWITCHING REGULATORS WITH BIPOLAR SWITCHING TRANSISTOR COLLECTOR 1 COMMON OVER-CURRENT PROTECTION INHIBIT 32 V SENSE ABSOLUTE MAXIMUM RATINGS Supply Voltage, VIN 15 V Output Voltage, VCEX 850 V VEBO 7 V Continuous Output Current, IC See Table 1 ms Single-Pulse Output Current, ICM See Table Sink Current, IS 1.5 A Drive Current, ID -700 mA Inhibit Voltage, VINH 15 V Over-Current Protection Voltage Range, VOCP ±3.5 V Insulation Voltage,V
