UCN5822A, UCN5821, BiMOS II 8-BIT SERIAL-INPUT / LATCHED DRIVERS

Data Sheet 26185.12E 5821 AND 5822 CLOCK 1 CLK SERIAL DATA IN 2 LOGIC 3 GROUND LOGIC SUPPLY 4 VDD SERIAL DATA OUT 5 STROBE 6 ST OUTPUT ENA.

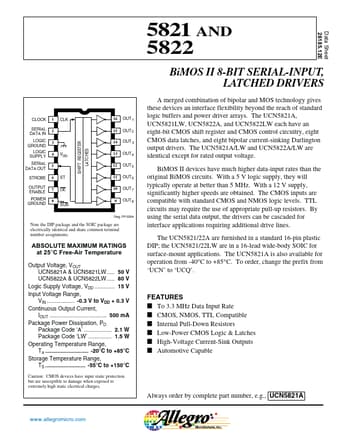

datasheet Preview Page 1 from Datasheet4u.com

UCN5821_Allegro.pdf

UCN5822A Datasheet Preview — This datasheet PDF includes multiple part numbers: UCN5822A, UCN5821. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UCN5822A, UCN5821

Manufacturer:

Allegro

File Size:

143.31 KB

Description:

BiMOS II 8-BIT SERIAL-INPUT / LATCHED DRIVERS

Note:

This datasheet PDF includes multiple part numbers: UCN5822A, UCN5821.
Please refer to the document for exact specifications by model.

Features

* I To 3.3 MHz Data Input Rate I CMOS, NMOS, TTL Compatible I Internal Pull-Down Resistors I Low-Power CMOS Logic & Latches I High-Voltage Current-Sink Outputs I Automotive Capable Always order by complete part number, e. g. , UCN5821A . www. allegromicro. com 5821 AND 5822 8-BIT SERIAL-INPUT, LATCHED D

Applications

* requiring additional drive lines. The UCN5821/22A are furnished in a standard 16-pin plastic DIP; the UCN5821/22LW are in a 16-lead wide-body SOIC for surface-mount applications. The UCN5821A is also available for operation from -40°C to +85°C. To order, change the prefix from ‘UCN’ to ‘UCQ’. FEATUR
