UCN5890 Datasheet, Drivers, Allegro

UCN5890 Features

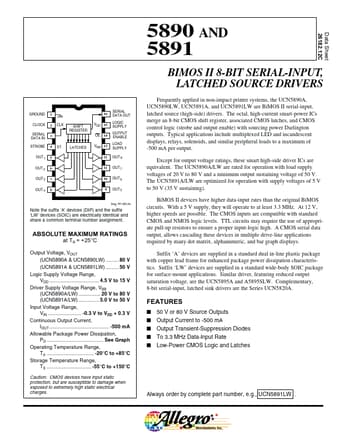

• Drivers I I I I I 50 V or 80 V Source Outputs Output Current to -500 mA Output Transient-Suppression Diodes To 3.3 MHz Data-lnput Rate Low-Power CMOS Logic and Latches Always order by complete

PDF File Details

Part number:

UCN5890

Manufacturer:

Allegro

File Size:

150.93kb

Download:

📄 Datasheet

Description:

(ucn5891) bimos ii 8-bit serial-input / latched source drivers.

UCN5890 Application

• Applications include multiplexed LED and incandescent displays, relays, solenoids, and similar peripheral loads to a maximum of -500 mA per output.
