2064 Datasheet - AllegroMicroSystems

2064 - QUAD1.5ADARLINGTONSWITCHES

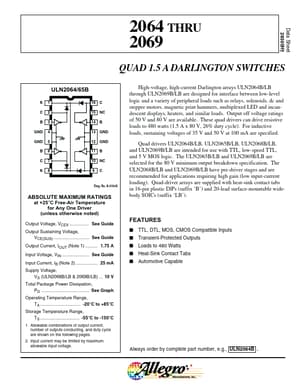

2064 THRU 2069 ULN2064/65B K C B GND GND B C K 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 C NC B GND GND B NC C QUAD 1.5 A DARLINGTON SWITCHES High-voltage, high-current Darlington arrays ULN2064B/LB through ULN2069B/LB are designed for interface between low-level logic and a variety of peripheral loads such as relays, solenoids, dc and stepper motors, magnetic print hammers, multiplexed LED and incandescent displays, heaters, and similar loads.

Output off voltage ratings of 50 V and 80 V are avail

2064 Features

* I I I I I TTL, DTL, MOS, CMOS Compatible Inputs Transient-Protected Outputs Loads to 480 Watts Heat-Sink Contact Tabs Automotive Capable Always order by complete part number, e.g., ULN2064B . 2064 THRU 2069 QUAD 1.5 A DARLINGTON SWITCHES SELECTION GUIDE ALLOWABLE PACKAGE POWER DISSIPATION IN WATTS
