2436 COUNTDOWNPOWERTIMER

OSC. An external resistor in the range of 200 kΩ to 2 MΩ and an external capacitor in the range of 0.001 µF to 1 µF determine the frequency of the internal oscillator. The period of oscillation is nominally RTCT with the overall output time period (after the digital countdown) of t = 4064 RTCT where.

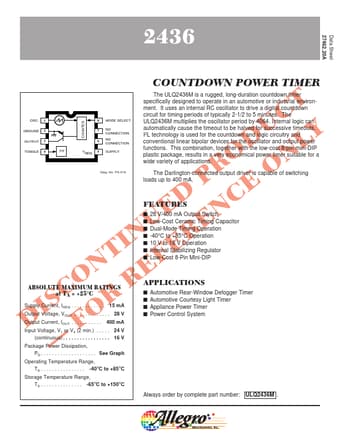

2436 COUNTDOWN POWER TIMER 2436 COUNTDOWN POWER TIMER Data Sheet 27462.20A COUNTER OSC. GROUND OUTPUT TOGGLE 1 2 3 4 F/F 8 7 6 MODE SELECT NO CONNECTION NO CONNECTION SUPPLY Dwg. No. PS-016 Dwg. No. PS-016 VREG 5 The ULQ2436M is a rugged, long-duration countdown timer specifically designed to operate in an automotive or industrial environment. It uses an internal RC oscillator to drive a digital countdown circuit for timing periods of typically 2-1/2 to 5 minutes. The ULQ2436M multipl.

2436 Features

* s s s s s s s ABSOLUTE MAXIMUM RATINGS at TA = +25°C P O R D U T C N 28 V/400 mA Output Switch Low-Cost Ceramic Timing Capacitor Dual-Mode Timing Operation -40°C to +85°C Operation 10 V to 16 V Operation Internal Stabilizing Regulator Low-Cost 8-Pin Mini-DIP E C O Y L APPLICATIONS s s s s

2436 Datasheet (79.32 KB)

Preview of 2436 PDF
2436 Datasheet Preview Page 2 2436 Datasheet Preview Page 3

Datasheet Details

Part number:

2436

Manufacturer:

AllegroMicroSystems

File Size:

79.32 KB

Description:

Countdownpowertimer.
