AS7C4096A 5.0V 4Mb CMOS FAST SRAM

AS7C4096A Description

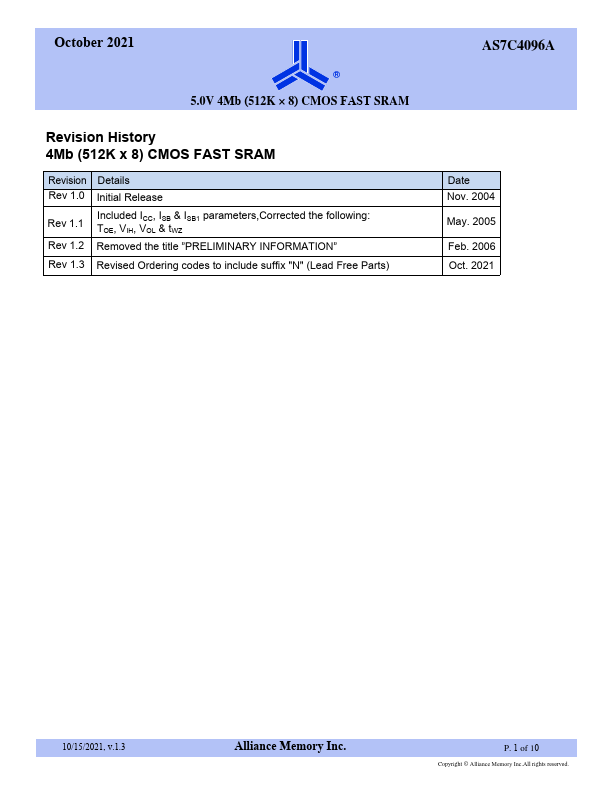

October 2021 ® 5.0V 4Mb (512K × 8) CMOS FAST SRAM Revision History 4Mb (512K x 8) CMOS FAST SRAM Revision Details Rev 1.0 Initial Release Rev 1.1 .
The AS7C4096A is a high-performance CMOS 4,194,304-bit Static Random Access Memory (SRAM) device organized as 524,288 words × 8 bits.

AS7C4096A Features

* Industrial and commercial temperature
* Organization: 524,288 words × 8 bits
* Center power and ground pins
* High speed - 10/12/15/20 ns address access time - 5/6 ns output enable access time
* Low power consumption: ACTIVE - 880mW/max @ 10 ns
* Low

AS7C4096A Applications

* where fast data access, low power, and simple interfacing are desired. Equal address access and cycle times (tAA, tRC, tWC) of 10/12/15/20 ns with output enable access times (tOE) of 5/6 ns are ideal for high-performance applications. The chip enable input CE permits easy memory expansion with multi

📥 Download Datasheet

Preview of AS7C4096A PDF

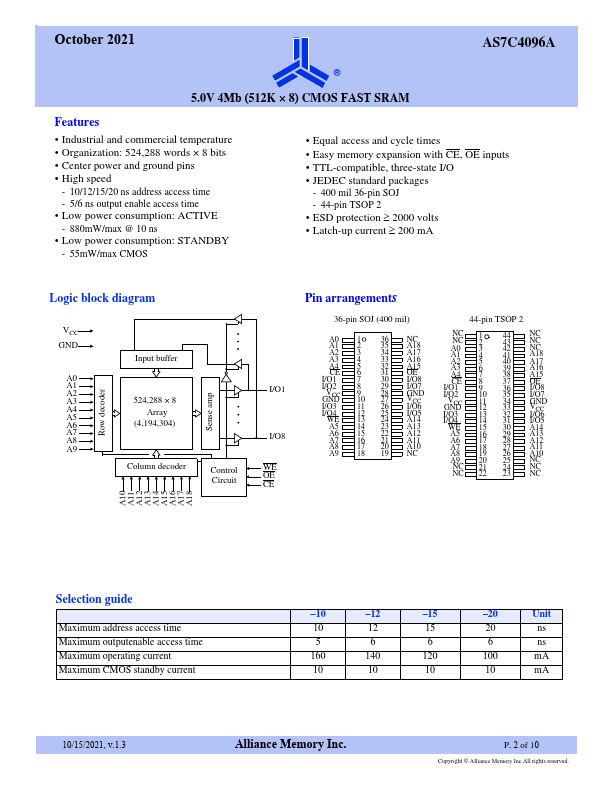

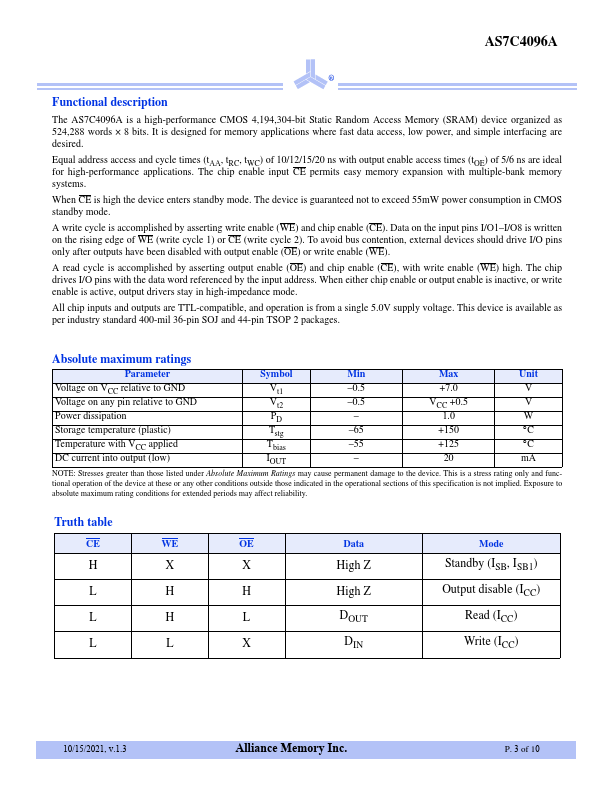

datasheet Preview Page 2 datasheet Preview Page 3
