6-Port JTAG Gateway

AS91L1006BU Features

* DataSheet4U.com Device Multi-Drop addressable via the IEEE Provides the ability to initiate Self-Test on a 1149.1 protocol remote PCB via a standard IEEE 1149.1 command Support for 6 local scan chains addressable via the IEEE 1149.1 interface Support for JTAG Technologies AutoWR™ feature Support for

AS91L1006BU General Description

The AS91L1006BU is a one to 6-port JTAG gateway. It partitions a single JTAG chain into six separate chains. These separate chains can be optionally configured to operate as a single chain. The AS91L1006BU device is used to provide enhanced capabilities to the standard IEEE1149.1. It enables the IEE.

AS91L1006BU Datasheet (581.99 KB)

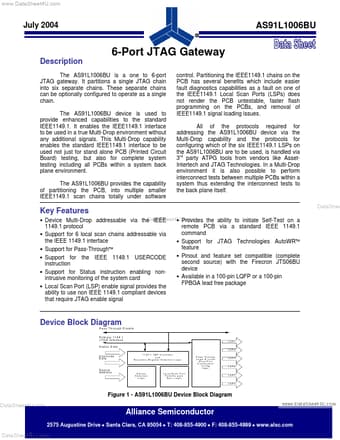

AS91L1006BU Datasheet Preview — Preview of AS91L1006BU PDF
