AS9F38G08SA-25BIN, AS9F31G08SA-25BIN SLC Parallel NAND FLASH

Alliance Semiconductor

Description

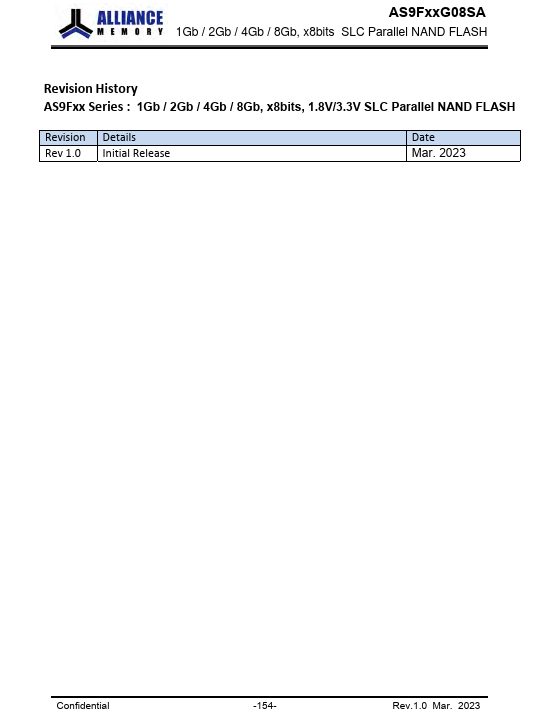

AS9FxxG08SA 1Gb / 2Gb / 4Gb / 8Gb, x8bits SLC Parallel NAND FLASH Revision History AS9Fxx Series : 1Gb / 2Gb / 4Gb / 8Gb, x8bits, 1.8V/3.3V SLC Paral.

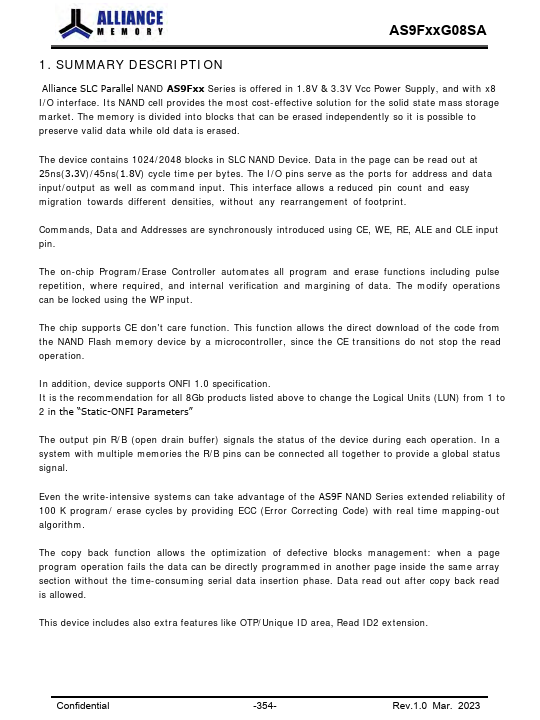

Alliance SLC Parallel NAND AS9Fxx Series is offered in 1.

📥 Download Datasheet

AS9F38G08SA-25BIN Datasheet Preview — This datasheet PDF includes multiple part numbers: AS9F38G08SA-25BIN, AS9F31G08SA-25BIN. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: AS9F38G08SA-25BIN, AS9F31G08SA-25BIN
Manufacturer: Alliance Semiconductor
File Size: 1.58 MB
Datasheet: AS9F31G08SA-25BIN-AllianceSemiconductor.pdf
Description: SLC Parallel NAND FLASH
Note: This datasheet PDF includes multiple part numbers: AS9F38G08SA-25BIN, AS9F31G08SA-25BIN.
Please refer to the document for exact specifications by model.

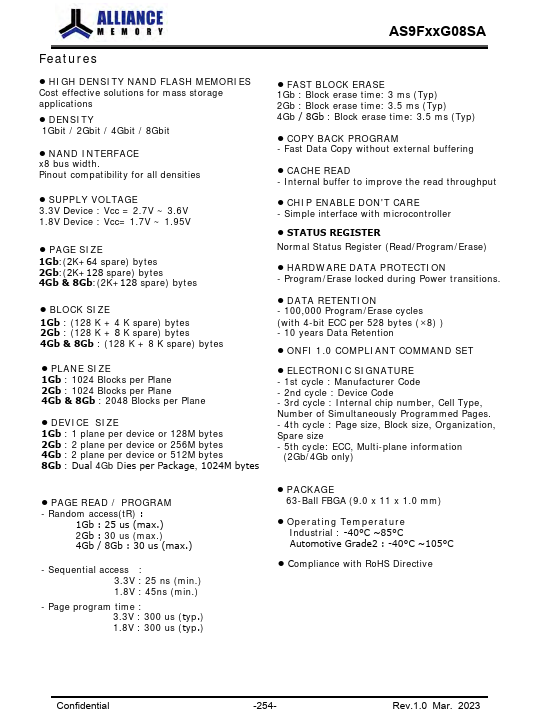

Applications

* DENSITY 1Gbit / 2Gbit / 4Gbit / 8Gbit
* NAND INTERFACE x8 bus width. Pinout compatibility for all densities
* SUPPLY VOLTAGE 3.3V Device : Vcc = 2.7V ~ 3.6V 1.8V Device : Vcc= 1.7V ~ 1.95V
* PAGE SIZE 1Gb:(2K+64 spare) bytes 2Gb:(2K+128 spare) bytes 4Gb & 8Gb:(2K+128 spare) bytes
