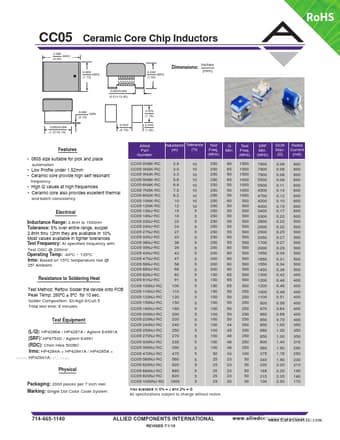

CC05-1000NJ-RC, CC05 - Ceramic Core Chip Inductors

Allied Components International

Datasheet Details

Part number	CC05-1000NJ-RC, CC05
Manufacturer	Allied Components International
File Size	384.32 KB
Description	Ceramic Core Chip Inductors
Datasheet	CC05_AlliedComponentsInternational.pdf
Note	This datasheet PDF includes multiple part numbers: CC05-1000NJ-RC, CC05. Please refer to the document for exact specifications by model.

0805 size suitable for pick and place automation.
Low Profile under 1.52mm.
Ceramic core provide high self resonant frequency.
High Q values at high frequencies.
Ceramic core also provides excellent thermal and batch consistency Electrical Inductance Range: 2.8nH to 1000nH Tolerance: 5% over entire range, excpet 2.8nH thru 12nH they are available in 10% Most values available in tighter tolerances Test Frequency: At specified frequency with Test OSC.
