MCB10, MCB05 - Mid Current Chip Beads

Allied Components International

📥 Download Datasheet

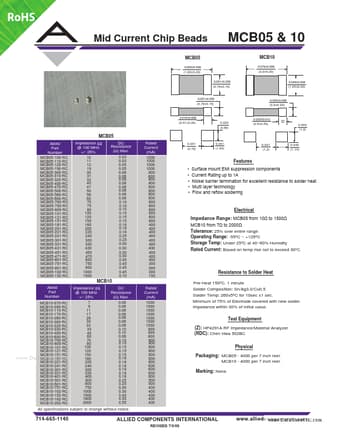

MCB10 Datasheet Preview — This datasheet PDF includes multiple part numbers: MCB10, MCB05. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MCB10, MCB05
Manufacturer	Allied Components International
File Size	774.49 KB
Description	Mid Current Chip Beads
Datasheet	MCB05_AlliedComponentsInternational.pdf
Note	This datasheet PDF includes multiple part numbers: MCB10, MCB05. Please refer to the document for exact specifications by model.

MCB10 Product details

Features

Surface mount EMI suppression components Current Rating up to 1A Nickel barrier termination for excellent resistance to solder heat Multi layer technology Flow and reflow soldering Electrical Impedance Range: MCB05 from 10Ω to 1500Ω MCB10 from 7Ω to 2000Ω Tolerance: 25% over entire range Operating Range: -55ºC ~ +125ºC Storage Temp: Under 25ºC at 40~60% Humidity Rated Current: Based on temp rise not to exceed 30ºC Resistance to Solder Heat Pre-.
