MLC10_AlliedComponentsInternational.pdf
Datasheet Details
Part number:
MLC10-xxxK-RC, MLC10
Manufacturer:
Allied Components International
File Size:
350.11 KB
Description:
Multilayer chip inductors.
Note:
This datasheet PDF includes multiple part numbers: MLC10-xxxK-RC, MLC10.
Please refer to the document for exact specifications by model.
MLC10-xxxK-RC, MLC10, Multilayer Chip Inductors

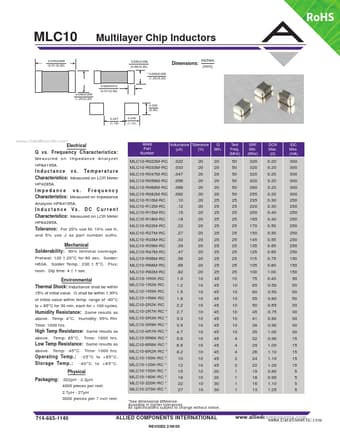

RoHS MLC10 0.079±0.008 (2.01±0.20) Multilayer Chip Inductors 0.035±0.008 (0.89±0.20) 0.049±0.008 (1.25±0.20) 0.020±0.012 (0.51±0.30) Dimensions: Inches (mm) 0.049±0.008 (1.25±0.20) 0.039 (0.99) 0.047 (1.19) 0.045 (1.14) www.DataSheet4U.com Electrical Q vs.
Frequency Characteristics: Measured on Impedance Analyzer HPA4195A.
I n d u c t a n c e v s .
Te m p e r a t u r e Characteristics: Measured on LCR Meter HP4285A.
Impedance vs.
Frequency Characteristics: Measured on Impedance Analy
