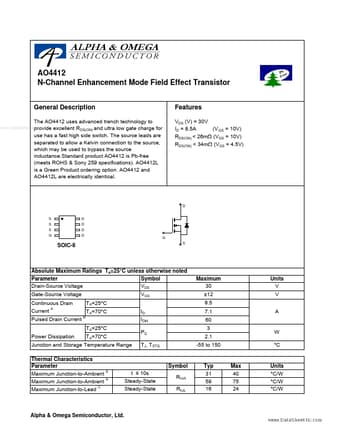

AO4412
Description
.. provide
Features
VDS (V) = 30V ID = 8.5A (V GS = 10V) RDS(ON) < 26mΩ (VGS = 10V) RDS(ON) < 34mΩ (VGS = 4.5V)
The AO4412 uses advanced trench technology to excellent RDS(ON) and ultra low gate charge for use has a fast high side switch. The source leads are separated to allow a Kelvin connection to the source, which may be used to bypass the source inductance.Standard product AO4412 is Pb-free (meets ROHS & Sony 259 specifications). AO4412L is a Green Product ordering option. AO4412 and AO4412L are electrically identical.
D S S S G D D D D
SOIC-8
Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol VDS Drain-Source Voltage VGS Gate-Source Voltage Continuous Drain Current A Pulsed Drain Current B TA=25°C Power Dissipation TA=70°C Junction and Storage Temperature Range Thermal Characteristics Parameter Maximum Junction-to-Ambient A Maximum Junction-to-Ambient A Maximum Junction-to-Lead C TA=25°C TA=70°C ID IDM PD TJ, TSTG
Maximum 30 ±12 8.5...
