AO4702 Datasheet, Transistor, Alpha & Omega Semiconductors

AO4702 Features

  • Transistor VDS (V) = 30V ID = 11A (VGS = 10V) RDS(ON) < 16mΩ (VGS = 10V) RDS(ON) < 25mΩ (VGS = 4.5V) SCHOTTKY VDS (V) = 30V, IF = 3A, VF<0.5V@1A D S S S G D D D D K G S A SOIC-8 www.DataSheet

PDF File Details

Part number:

AO4702

Manufacturer:

Alpha & Omega Semiconductors

File Size:

137.61kb

Download:

📄 Datasheet

Description:

N-channel enhancement mode field effect transistor. The AO4702 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. A Schottky Diode is packaged in parallel

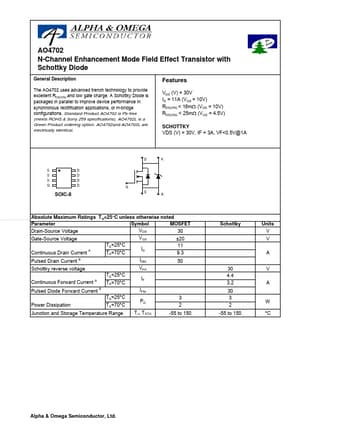

Datasheet Preview: AO4702 📥 Download PDF (137.61kb)
Page 2 of AO4702 Page 3 of AO4702

AO4702 Application

  • Applications or H-bridge configurations. Standard Product AO4702 is Pb-free (meets ROHS & Sony 259 specifications). AO4702L is a Green Product orde
