AOZ1269QI-02

28V/12A Synchronous Regulator

AOZ1269QI-02 Features

* multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, as well as thermal shutdown. The AOZ1269-02 is available in a 4mm x 4mm QFN-23L package and is rated over a -40°C to +85°C ambient temperature rang

AOZ1269QI-02 General Description

The AOZ1269-02 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V. The device is capable of supplying 12A of continuous output current with an output voltage adjustable down to 0.8V (±1.0%). A proprietary constant on-time PWM control with input feed-forward re.

AOZ1269QI-02 Datasheet (1.04 MB)

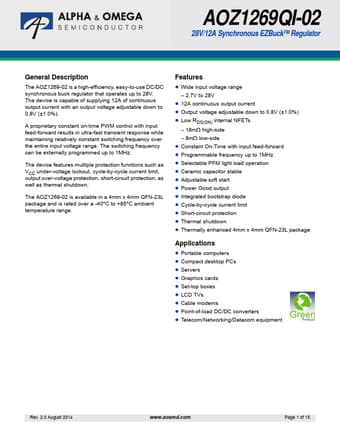

Preview of AOZ1269QI-02 PDF

Datasheet Details

Part number:

AOZ1269QI-02

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.04 MB

Description:

28v/12a synchronous regulator.
