AOZ13938DI-01/02 ECPower™ 32 V 20 mΩ Smart Protection Switch Ideal Diode True Reverse Current Blocking General .
AOZ13938DI is protection switch intended for applications that require reverse current protection.

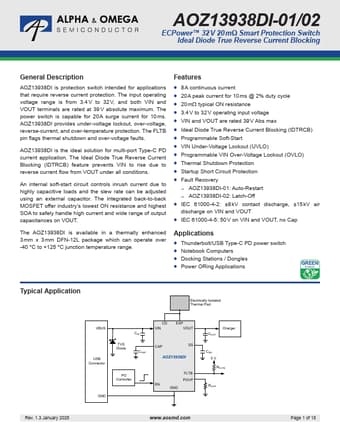

datasheet Preview Page 1 from Datasheet4u.com

AOZ13938DI-01-AlphaOmegaSemiconductors.pdf

AOZ13938DI-02 Datasheet Preview — This datasheet PDF includes multiple part numbers: AOZ13938DI-02, AOZ13938DI-01. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

AOZ13938DI-02, AOZ13938DI-01

Manufacturer:

Alpha & Omega Semiconductors

File Size:

1.79 MB

Description:

Smart Protection Switch

Note:

This datasheet PDF includes multiple part numbers: AOZ13938DI-02, AOZ13938DI-01.
Please refer to the document for exact specifications by model.

Features

* 8 A continuous current
* 20 A peak current for 10 ms @ 2% duty cycle
* 20 mΩ typical ON resistance
* 3.4 V to 32 V operating input voltage
* VIN and VOUT are rated 39 V Abs max
* Ideal Diode True Reverse Current Blocking (IDTRCB)
* Programmab

Applications

* that require reverse current protection. The input operating voltage range is from 3.4 V to 32 V, and both VIN and VOUT terminals are rated at 39 V absolute maximum. The power switch is capable for 20 A surge current for 10 ms. AOZ13938DI provides under-voltage lockout, over-voltage, reverse-current
