AOZ2254TQI-11 28V/10A Synchronous Regulator

📥 Download Datasheet Datasheet Preview Page 1

Description

AOZ2254TQI-11 28V/10A Synchronous EZBuckTM Regulator General .
The AOZ2254TQI-11 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

📥 Download Datasheet

Preview of AOZ2254TQI-11 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2254TQI-11 is available in a 4mm x 4mm QFN22L package and is rated over a -40°C to +85°C ambient temperature range. F

Applications

* Compact desktop PCs
* Graphics cards
* Set-top boxes
* LCD TVs
* Cable modems
* Point-of-load DC/DC converters

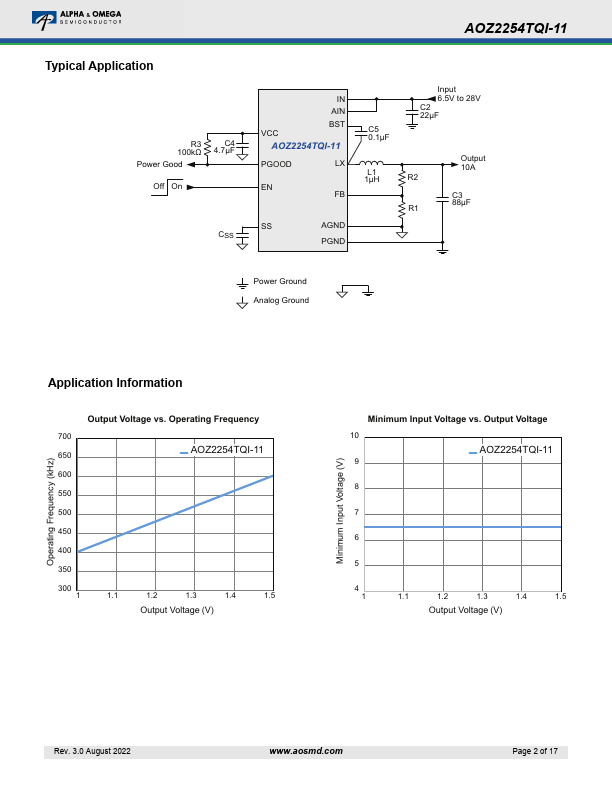

* Telecom/Networking/Datacom equipment Rev. 3.0 August 2022 www. aosmd. com Page 1 of 17 AOZ2254TQI-11 Typical Application R3 100kΩ Power Good C4 4.7μF O
