AOZ2261NQI-11 28V/8A Synchronous Regulator

📥 Download Datasheet Datasheet Preview Page 1

Description

AOZ2261NQI-11 28V/8A Synchronous EZBuckTM Regulator General .
The AOZ2261NQI-11 is a high-efficiency, easy-to-use DC/DC synchronous buck regulator that operates up to 28V.

📥 Download Datasheet

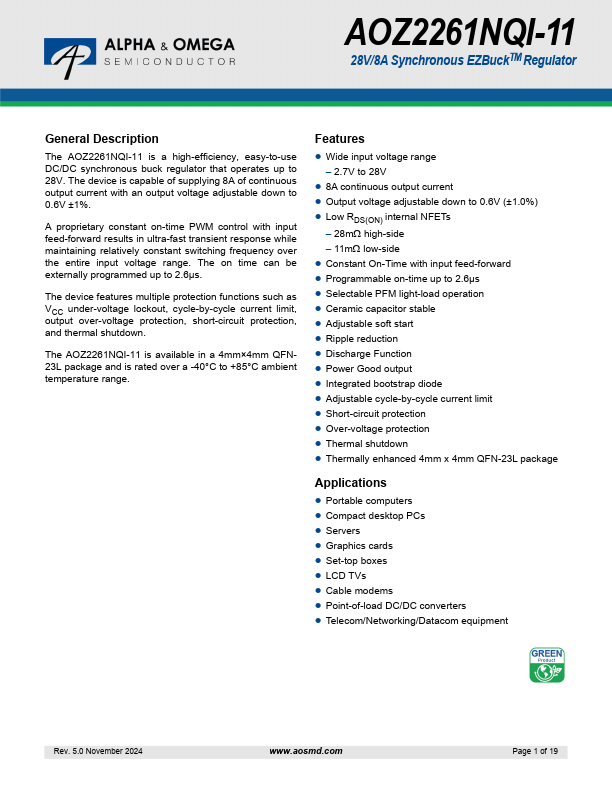

Preview of AOZ2261NQI-11 PDF

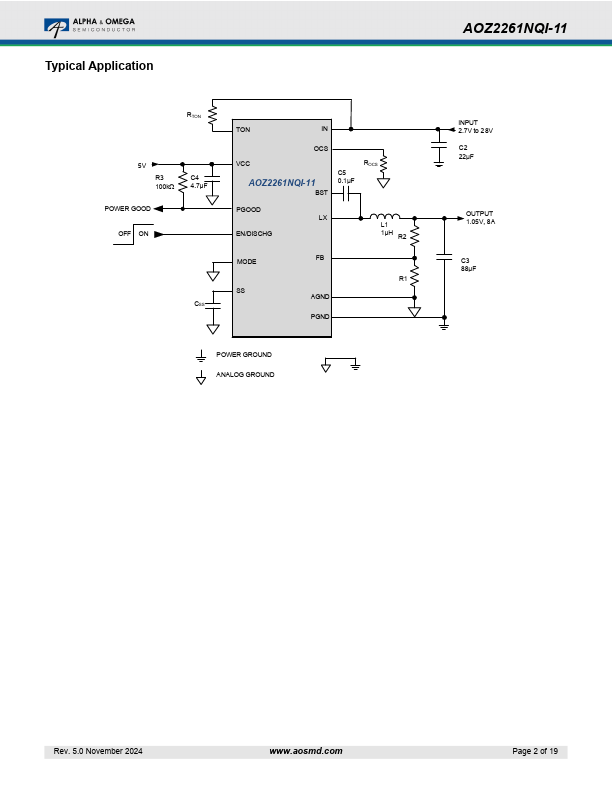

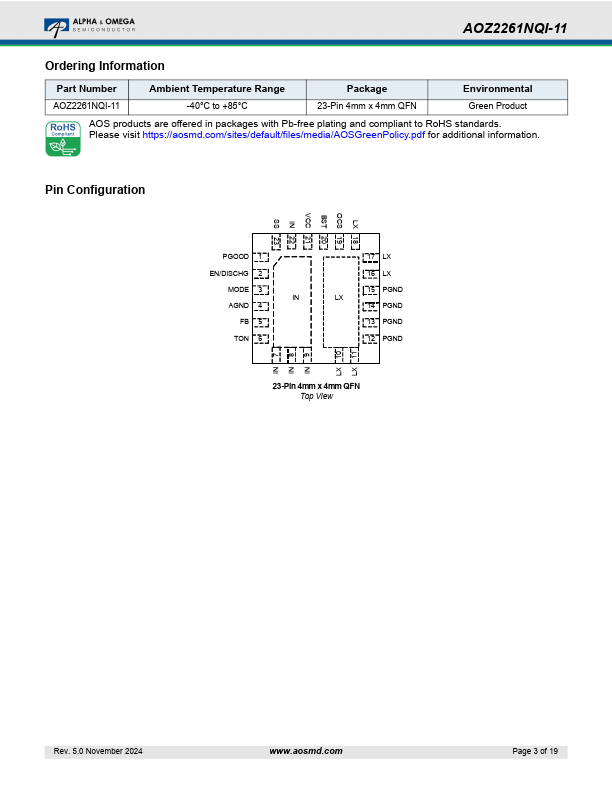

datasheet Preview Page 2 datasheet Preview Page 3

Features

* multiple protection functions such as VCC under-voltage lockout, cycle-by-cycle current limit, output over-voltage protection, short-circuit protection, and thermal shutdown. The AOZ2261NQI-11 is available in a 4mm×4mm QFN23L package and is rated over a -40°C to +85°C ambient temperature range. Fea

Applications

* Portable computers
* Compact desktop PCs
* Servers
* Graphics cards
* Set-top boxes
* LCD TVs
* Cable modems
* Point-of-load DC/DC converters
* Telecom/Networking/Datacom equipment Rev. 5.0 November 2024 www. aosmd. com Page 1 of 19 Typical Application RTON
