AOZ5117QI-02 - High-Performance DrMOS Power Module

Description

The AOZ5117QI-02 is a high efficiency synchronous buck power stage module consisting of two asymmetrical MOSFETs and an integrated driver.

The MOSFETs are individually optimized for operation in the synchronous buck configuration.

Features

  • are provided making the AOZ5117QI-02 a highly versatile power module. The boot-strap diode is integrated in the driver. The Low-Side MOSFET can be driven into diode emulation mode to provide asynchronous operation and improve light-load performance. The pin-out is also optimized for low parasitics, keeping their effects to a minimum. Features.
  • 4.5V to 18V power supply range.
  • 4.5V to 5.5V driver supply range.
  • 60A continuous output current - Up to 80A with 10ms on pulse - Up to 120.

📥 Download Datasheet

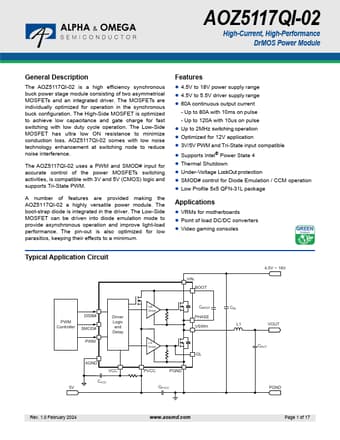

Datasheet preview – AOZ5117QI-02
