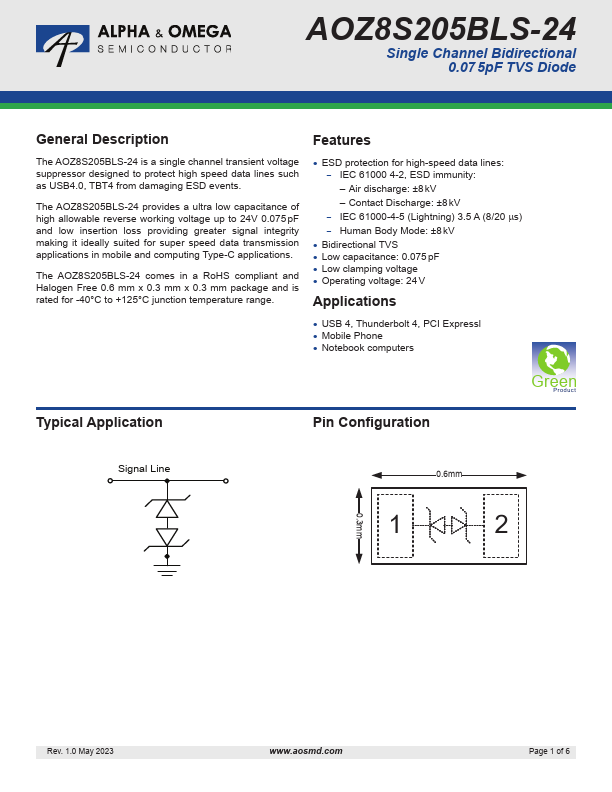

AOZ8S205BLS-24 - Single Channel Bidirectional TVS Diode

Alpha & Omega Semiconductors

AOZ8S205BLS-24 Datasheet Preview — Preview of AOZ8S205BLS-24 PDF

Datasheet Details

Part number	AOZ8S205BLS-24
Manufacturer	Alpha & Omega Semiconductors
File Size	765.66 KB
Description	Single Channel Bidirectional TVS Diode
Datasheet	AOZ8S205BLS-24-AlphaOmegaSemiconductors.pdf

AOZ8S205BLS-24 Product details

Description

The AOZ8S205BLS-24 is a single channel transient voltage suppressor designed to protect high speed data lines such as USB4.0, TBT4 from damaging ESD events.

Features

-.
ESD protection for high-speed data lines: IEC 61000 4-2, ESD immunity:.
Air discharge: ±8 kV.
Contact Discharge: ±8 kV - IEC 61000-4-5 (Lightning) 3.5 A (8/20 µs) - Human Body Mode: ±8 kV.
Bidirectional TVS.
Low capacitance: 0.075 pF.
Low clamping voltage.
Operating voltage: 24 V.
