D452 N-Channel MOSFET

📥 Download Datasheet  Datasheet Preview Page 1

Description

AOD452 N-Channel Enhancement Mode Field Effect Transistor General .
Features The AOD452 uses advanced trench technology and design to provide excellent RDS(ON) with low gate charge.

📥 Download Datasheet

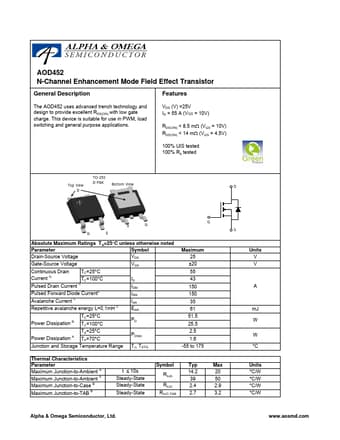

Preview of D452 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
D452
Manufacturer
Alpha & Omega Semiconductors
File Size
128.29 KB
Datasheet
D452-AlphaOmegaSemiconductors.pdf
Description
N-Channel MOSFET

Applications

* VDS (V) =25V ID = 55 A (VGS = 10V) RDS(ON) < 8.5 mΩ (VGS = 10V) RDS(ON) < 14 mΩ (VGS = 4.5V) 100% UIS tested 100% Rg tested Top View D TO-252 D-PAK Bottom View D GS SG Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage
