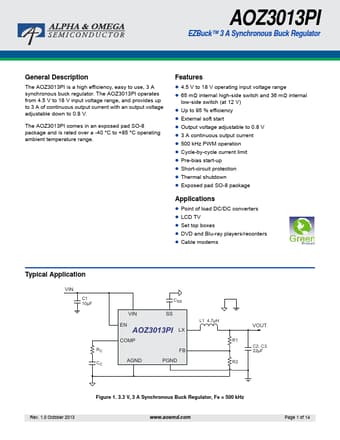

Additional preview pages of the Z3013PI datasheet.

Z3013PI Product details

Description

The AOZ3013PI is a high efficiency, easy to use, 3 A synchronous buck regulator.

Features

4.5 V to 18 V operating input voltage range.
65 mΩ internal high-side switch and 36 mΩ internal low-side switch (at 12 V).
Up to 95 % efficiency.
External soft start.
Output voltage adjustable to 0.8 V.
3 A continuous output current.
500 kHz PWM operation.
Cycle-by-cycle current limit.
Pre-bias start-up.
Short-circuit protection.
Thermal shutdown.
Exposed pad SO-8 package.
