AF002N2-32

GaAs IC 15 dB Voltage Variable Attenuator Single Controller

AF002N2-32 Features

* s Single Voltage Control, Positive or Negative Voltage s Low Cost SOT-143 Package s 15 dB Dynamic Range s Non-Reflective 0.037 (0.94 mm) 0.030 (0.76 mm) 0.055 (1.40 mm) 0.047 1.19 mm) 0.098 (2.49 mm) 0.083 (2.11 mm) SOT-143 0.120 (3.05 mm) 0.105 (2.67 mm) 0.075 (1.91 mm) 0.021 (0.53 mm) 0.015 (0.3

AF002N2-32 General Description

The AF002N2-32 is a single control non-reflective IC FET VVA ideal for AGC applications. Its low DC drain characteristic and size make it suitable for PCS and portable cellular markets. A positive control voltage may be used by adding 2 DC blocking capacitors (CBL) and 1 bypass capacitor (CBP). 0.00.

AF002N2-32 Datasheet (22.67 KB)

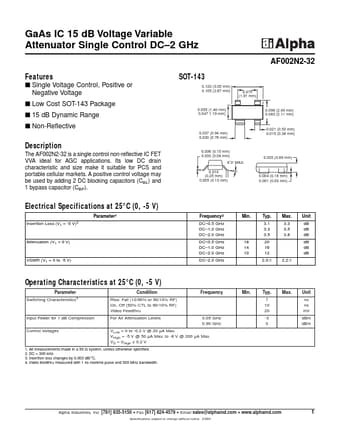

Preview of AF002N2-32 PDF

Datasheet Details

Part number:

AF002N2-32

Manufacturer:

Alpha Industries

File Size:

22.67 KB

Description:

Gaas ic 15 db voltage variable attenuator single controller.
