- Description
- PHEMT GaAs IC High Linearity 3 V Control SPDT Switch 0.1-2 GHz
AS190-73 Description

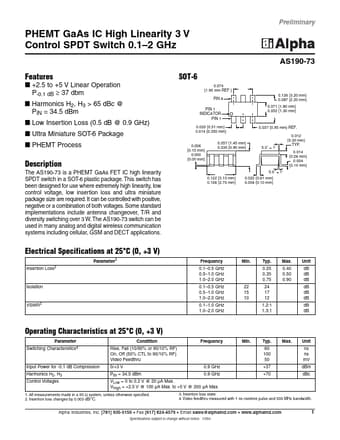

Preliminary PHEMT GaAs IC High Linearity 3 V Control SPDT Switch 0.1 *2 GHz AS190-73 .
The AS190-73 is a PHEMT GaAs FET IC high linearity SPDT switch in a SOT-6 plastic package.
AS190-73 Features
* I +2.5 to +5 V Linear Operation P-0.1 dB ≥ 37 dbm I Harmonics H2, H3 > 65 dBc @ PIN = 34.5 dBm I Low Insertion Loss (0.5 dB @ 0.9 GHz) I Ultra Miniature SOT-6 Package I PHEMT Process
SOT-6
0.074 (1.90 mm REF. ) PIN 6 PIN 1 INDICATOR PIN 1 0.020 (0.51 mm) 0.014 (0.350 mm) 0.057 (1.45 mm) 0.035 (0.90
AS190-73 Applications
* 0.006 (0.15 mm) 0.000 (0.00 mm)
5.0˚ ± 1˚
0.122 (3.10 mm) 0.106 (2.70 mm)
0.022 (0.61 mm) 0.004 (0.10 mm)
Electrical Specifications at 25°C (0, +3 V)
Parameter1 Insertion Loss2 Frequency 0.1
* 0.5 GHz 0.5
* 1.0 GHz 1.0
* 2.0 GHz 0.1
* 0.5 GHz 0.5
* 1.0 GHz 1.0
