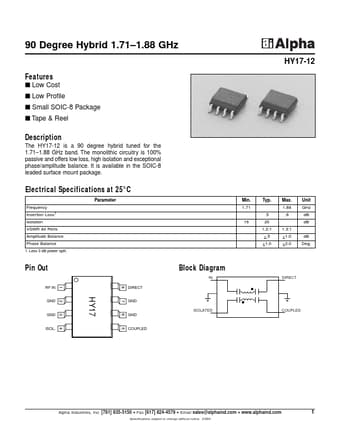

HY17-12
Features s Low Cost s Low Profile s Small SOIC-8 Package s Tape & Reel
Description
The HY17-12 is a 90 degree hybrid tuned for the 1.71- 1.88 GHz band. The monolithic circuitry is 100% passive and offers low loss, high isolation and exceptional phase/amplitude balance. It is available in the SOIC-8 leaded surface mount package.
Electrical Specifications at 25°C
Parameter Frequency Insertion Loss1 Isolation VSWR All Ports Amplitude Balance Phase Balance
1. Less 3 d B power split.
Min. 1.71
Typ. .5
Max. 1.88 .6 1.3:1 +1.0 +2.0
Unit GHz d B d B d B Deg.
20 1.2:1 +.5 +1.0
Pin Out
RF IN DIRECT
Block Diagram
IN DIRECT
HY17
GND ISOLATED COUPLED
2 3 4
7 6
ISOL.
COUPLED
Alpha Industries, Inc. [781] 935-5150
- Fax [617] 824-4579
- Email sales@alphaind.
- .alphaind.
Specifications subject to change without notice. 3/99A
90 Degree Hybrid 1.71- 1.88 GHz
Typical Performance Data
-3.00 -3.20 1.30 1.25 Direct
Loss (d B)
-3.40 -3.60 Coupled -3.80...
