EPM3064A, EPM3032A - Programmable Logic

Altera

The EPM3064A by Altera is a Programmable Logic. Below is the official datasheet preview.

📥 Download Datasheet

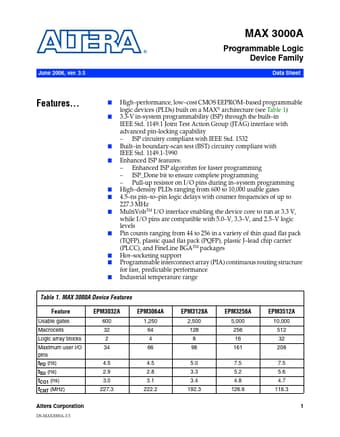

EPM3064A Programmable Logic by Altera - Datasheet Preview — Official preview page of the **EPM3064A** Programmable Logic datasheet (Altera).

Datasheet Details

Part number	EPM3064A, EPM3032A
Manufacturer	Altera
File Size	729.56 KB
Description	Programmable Logic
Datasheet	EPM3032A-Altera.pdf
Note	This datasheet PDF includes multiple part numbers: EPM3064A, EPM3032A. Please refer to the document for exact specifications by model.
Additional preview pages of the EPM3064A datasheet.

EPM3064A Product details

Description

PCI compatible Bus friendly architecture including programmable slew rate control Open drain output option Programmable macrocell flipflops with individual clear, preset, clock, and clock enable controls Programmable power saving mode for a power reduction of over 50% in each macrocell Configurable expander product term distribution, allowing up to 32 product terms per macrocell Programmable security bit for prote

Features

High.
performance, low.
cost CMOS EEPROM.
based programmable logic devices (PLDs) built on a MAX® architecture (see Table 1).
3.3-V in-system programmability (ISP) through the built.
in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface with advanced pin-locking capability.
ISP circuitry compliant with IEEE Std. 1532.
Built.
in boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990.
Enhanced ISP features:.
